I'm still working on this page, so please be careful.
I am not responsible for any problems you experience as a result of
trying to do anything described here.
This page describes wiring up a garage door opener to a Porsche
switch and installing it in one of the blanks in the Boxster console.
This will not work if the car is equipment with heated seats as the
blanks will be filled.
In my case, I needed to wire up a two-button
Genie Intellicode garage door opener as my alley has a remote controlled
gate in addition to the garage. I purchased the remote at Home Depot
for around $27. I chose the regular sized model as it uses a 12V
battery, so if I ever want to wire it into the car battery, I could
do so easily. I then had the remote programmed to both my garage
and the gate. The round button opens my garage, the triangular
button opens the gate.
First of all, buy the following parts:
- Genie Intellicode Garage Door Opener
- Porsche part# 996 613 134 00 A02. This is a defogger switch. I like
this switch as it has an LED that can be wired in to a garage opener's
LED to give you positive response. My garage door opener didn't have an
LED, so it didn't prove useful yet, but I still intend to hack it to work
at some point.
- VW part # 443972995. This is what the switch mounts into to hold
it in the console, but I didn't end up using it.

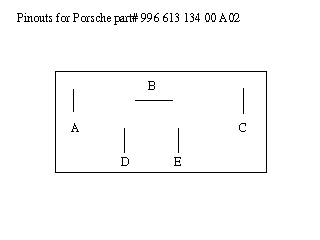

- A - Backlighting of the switch
- B - +12V input
- C - LED
- D - Activated when high part of switch pressed
- E - Activated when low part of switch pressed
)
)
)
)
)
)
)
)
)
)
)
)
)
)
