Internet Explorer w/ActiveX on Linux (v1.0)
Last modified: Friday November 9, 2012

I'm trying to get as much working as possible as quickly as possible. Your continued feedback below would be greatly appreciated. I'm trying to use Linux as much as possible and there are only a few applications for which I have no choice but to use Windows for. There is one stubborn Real Estate related website I use called MLXchange that for some mysterious reason was written to require ActiveX controls. I recently ran across the IEs4Linux project which allows you to install various versions of Internet Explorer very easily on most popular Linux distributions.

However MLXchange still didn't work. After some experiementation and Googling I finally figured out the secrets. I assume this should also allow most other websites that require ActiveX to also work. Please let me know in the comments section at the bottom if this does or does not work with other sites.


Installing Internet Explorer

If you're using Fedora 7 then I recommend you follow my F7 Tips page to get the system set up and get IEs4Linux installed.

Briefly, IEs4Linux requires wine  and cabextract  which on a yum  based system is very easy to install:

# yum -y install wine cabextract
The rest of these instructions are straight from my F7 Tips paget download the latest script, extract and run it. The example below is based on version 2.0.5, just adjust the version number as necessary. Please note that you will want to install and run this as your own user, NOT as root. I used the defaults except that I installed all the versions of IE. I do some web development and I always find myself needing to resolve some goofy incompatibilites with older versions of IE.
$ gtar xzvf ies4linux-2.0.5.tar.gz
$ cd ies4linux-2.0.5
$ ./ies4linux
Welcome, greg! I'm IEs4Linux.
I can install IE 6, 5.5 and 5.0 for you easily and quickly.
You are just four 'enter's away from your IEs.

I'll ask you some questions now. Just answer y or n (default answer is the bold one)

IE 6 will be installed automatically.
Do you want to install IE 5.5 SP2 too? [ y / n ] y
        .
        .
        .
IEs 4 Linux installations finished!

To run your IEs, type:
 ie6
 ie55
 ie5


Adjust IE Security Settings

The default security settings will not allow ActiveX controls to be run. This is true even when running on a real Windows system.

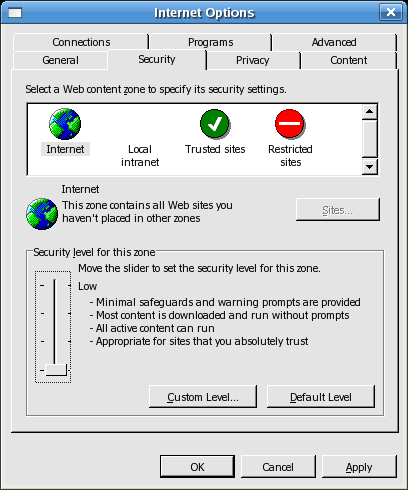

Just open Tools -> Internet Options -> Security and just set the security level to Low like shown below:

Install a required DLL

If you try to use MLXchange now you'll see an error like this generated by IE 6.0:

Error message:
err:module:import_dll Library MFC42.DLL (which is needed by L"C:\\windows\\system32\\GeacView.dll") not found
err:module:import_dll Library GeacView.dll (which is needed by L"C:\\windows\\Downloaded Program Files\\GeacRevw.ocx") not found
err:module:import_dll Library MFC42.DLL (which is needed by L"C:\\windows\\Downloaded Program Files\\GeacRevw.ocx") not found

What you need to do is find a real Windows XP installation and grab the MFC42.DLL file in C:\Windows\System\  and copy it to your Linux system into the directory for the version of Internet Explorer you will be using.

$ cp mfc42.dll ~/.ies4linux/ie6/drive_c/windows/system

The final step is to inform the special WINE installation that you will be installing native DLLs. Just create the file ~/.ies4linux/ie6/config  and put the following lines into the file:

; default for all other dlls
"*" = "builtin, native"

That's it! Now just start ie6 and use the ActiveX website. You're now just that much closer to ditching Windows for good.

The comments section below is only for comments, suggestions or corrections for this guide only. Please do not use this for general Fedora/Linux support. If you do require support for something other than what's described here I recommend using Fedora Forums.

Comments From People Like You!
Internet Explorer w/ActiveX on Linux
Add a Comment add a comment
Steven Kovacs
25-Sep-2008 08:44
This is what I am getting when I try installing IE 7 on Fedora 9.

IEs4Linux 2 is developed to be used with recent Wine versions (0.9.x). It seems that you are using an old version. It's recommended that you update your wine to the latest version (Go to: winehq.com).

python: xcb_lock.c:33: _XCBUnlockDisplay: Assertion `xcb_get_request_sent(dpy->xcb->connection) == dpy->request' failed.
Locking assertion failure.  Backtrace:
#0 /usr/lib64/libxcb-xlib.so.0 [0x3264a0097c]
#1 /usr/lib64/libxcb-xlib.so.0(xcb_xlib_lock+0x17) [0x3264a00af7]
#2 /usr/lib64/libX11.so.6 [0x326424c610]
#3 /usr/lib64/libX11.so.6(XUngrabPointer+0x1a) [0x326424291a]
#4 /usr/lib64/libgdk-x11-2.0.so.0(gdk_display_pointer_ungrab+0xae) [0x7ffb007e236e]
#5 /usr/lib64/libgdk-x11-2.0.so.0(gdk_pointer_ungrab+0x1b) [0x7ffb007b7c79]
#6 /usr/lib64/gtk-2.0/modules/libgnomebreakpad.so [0x7ffaff61f69b]
#7 /lib64/libpthread.so.0 [0x3262e0ed30]
#8 /lib64/libc.so.6(gsignal+0x35) [0x3262232215]
#9 /lib64/libc.so.6(abort+0x183) [0x3262233d83]
#10 /lib64/libc.so.6(__assert_fail+0xe9) [0x326222b039]
#11 /usr/lib64/libX11.so.6 [0x326424c5b7]
#12 /usr/lib64/libXrender.so.1(XRenderCompositeTrapezoids+0x23e) [0x3266e060ae]
#13 /usr/lib64/libcairo.so.2 [0x326f64b0cc]
#14 /usr/lib64/libcairo.so.2 [0x326f61ffda]
#15 /usr/lib64/libcairo.so.2 [0x326f623802]
#16 /usr/lib64/libcairo.so.2 [0x326f6229da]
#17 /usr/lib64/libcairo.so.2 [0x326f623335]
#18 /usr/lib64/libcairo.so.2 [0x326f623a04]
#19 /usr/lib64/libcairo.so.2 [0x326f620412]
python: xcb_lock.c:77: _XGetXCBBuffer: Assertion `((int) ((xcb_req) - (dpy->request)) >= 0)' failed.
Multiple segmentation faults occurred; can't display error dialog
I will try IE 6 later, but it this is something you can ponder on and help me out I would greatly appreciate it. I have used Red Hat since V5 and Fedora Core 1 to 6. Now I have installed and am using V9. I never have had any sucess with wine. I hope you can help
Cheers,
Scoob (Steven Kovacs)
Askar Ali
14-Jun-2008 06:11
Its now working for me on Fedora 9, duno what has been changed coz i didn't do anything just tries to uninstall/install it couple of times.

Yes today I have updated my fedora 9 too might be some updates made it working ;)
Drew DeNardo
03-Jun-2008 07:14
I have Fedora 9, too.  I got the same error as below when I did a GUI-based install.  I added "--no-gui" to the ies4liunux command line and everything installed just fine
Askar Ali
27-May-2008 09:13
Okay installation went smooth after adding "--no-gui" to command line, however now when i type "ie6" it take sometime and nothing happen and i got the shell again, any idea what I am missing?
Askar Ali
27-May-2008 08:25
I am trying to install it on Fedora 9, however everytime i run i get error...

python: xcb_lock.c:33: _XCBUnlockDisplay: Assertion `xcb_get_request_sent(dpy->xcb->connection) == dpy->request' failed.
Locking assertion failure.  Backtrace:
#0 /usr/lib/libxcb-xlib.so.0 [0xfd8767]
#1 /usr/lib/libxcb-xlib.so.0(xcb_xlib_lock+0x2e) [0xfd890e]
#2 /usr/lib/libX11.so.6 [0xd8b109]
#3 /usr/lib/libX11.so.6(XUngrabPointer+0x25) [0xd80d55]
#4 /usr/lib/libgdk-x11-2.0.so.0(gdk_display_pointer_ungrab+0xba) [0xbf5f54]
#5 /usr/lib/libgdk-x11-2.0.so.0(gdk_pointer_ungrab+0x1c) [0xbccdd9]
#6 /usr/lib/gtk-2.0/modules/libgnomebreakpad.so [0x6b8736e]
#7 /usr/lib/gtk-2.0/modules/libgnomebreakpad.so(_ZN15google_breakpad16ExceptionHandler21InternalWriteMinidumpEijPP10sigcontext+0x43) [0x6b87893]
#8 /usr/lib/gtk-2.0/modules/libgnomebreakpad.so(_ZN15google_breakpad16ExceptionHandler15HandleExceptionEi+0xa3) [0x6b87e23]
#9 [0x12e400]
#10 /lib/libc.so.6(abort+0x188) [0x2f6028]
#11 /lib/libc.so.6(__assert_fail+0xee) [0x2ed57e]
#12 /usr/lib/libX11.so.6 [0xd8b09e]
#13 /usr/lib/libXrender.so.1(XRenderCompositeTrapezoids+0x1fc) [0xebd3bc]
#14 /usr/lib/libcairo.so.2 [0xd253e7]
#15 /usr/lib/libcairo.so.2 [0xcf6141]
#16 /usr/lib/libcairo.so.2 [0xcf9cb4]
#17 /usr/lib/libcairo.so.2 [0xcf8d87]
#18 /usr/lib/libcairo.so.2 [0xcf9795]
#19 /usr/lib/libcairo.so.2 [0xcf9e41]
python: xcb_lock.c:77: _XGetXCBBuffer: Assertion `((int) ((xcb_req) - (dpy->request)) >= 0)' failed.
ui/pygtk/python-gtk.sh: line 6:  5248 Aborted                 python "$IES4LINUX"/ui/pygtk/ies4linux-gtk.py
sotterranea
07-Mar-2008 12:24
I downloaded mfc42.cab manually from http://activex.microsoft.com/controls/vc/mfc42.cab
and I successfully run ./ies4linux --no-gui.

It works! :)
sotterranea
07-Mar-2008 12:16
Under
CentOS release 5 (Final)

I have the following error:
 Installing ActiveX MFC42
/home/myuser/.ies4linux/downloads/mfc42.cab: No such file or directory
An error occured when trying to cabextract some files.

The full feedback:

IEs4Linux will:
 - Install Internet Explorers: 6.0
 - Using IE locale: EN-US
 - Install Adobe Flash 9.0
 - Install everything at: /home/myuser/.ies4linux
[ OK ]

Downloading everything we need
 Downloading from microsoft.com:
  DCOM98.EXE
  0%   mfc42.cab   249973USA8.exe
  ADVAUTH.CAB
  CRLUPD.CAB
  HHUPD.CAB
  IEDOM.CAB
  IE_EXTRA.CAB
  IE_S1.CAB
  IE_S2.CAB
  IE_S5.CAB
  IE_S4.CAB
  IE_S3.CAB
  IE_S6.CAB
  SETUPW95.CAB
  FONTCORE.CAB
  FONTSUP.CAB
  VGX.CAB
  SCR56EN.CAB

 Downloading from macromedia.com:
  swflash.cab
[ OK ]

Installing IE 6
 Initializing
 Creating Wine Prefix
 Extracting CAB files
 Installing IE 6
 Installing DCOM98
 Installing TTF Fonts
 Installing ActiveX MFC42
/home/myuser/.ies4linux/downloads/mfc42.cab: No such file or directory
An error occured when trying to cabextract some files.
Sohail Mirza
23-Feb-2008 23:18
For those experiencing the Python segmentation fault, a workaround that helped me is to run ies4linux from the command-line with the --no-gui option.  Bypassing the UI avoids the Python errors you might otherwise experience.

So, try the following from your terminal:

./ies4linux --no-gui

For all the command line options, try this:

./ies4linux --full-help
Hessu
10-Jan-2008 09:01
I'm getting the same error has Justin:

tj@spold ~/ies4linux-2.99.0: ./ies4linux
/home/tj/ies4linux-2.99.0/ui/pygtk/ies4linux-gtk.py:399: Warning: g_object_ref: assertion `object->ref_count > 0' failed gtk.main()
/home/tj/ies4linux-2.99.0/ui/pygtk/ies4linux-gtk.py:399: Warning: g_object_unref: assertion `G_IS_OBJECT (object)' failed gtk.main()
ui/pygtk/python-gtk.sh: line 6:  7076 Segmentation fault      (core dumped) python "$IES4LINUX"/ui/pygtk/ies4linux-gtk.py

tj@spold ~/ies4linux-2.99.0: uname -a
Linux spold 2.6.22-14-generic #1 SMP Tue Dec 18 08:02:57 UTC 2007 i686 GNU/Linux
Justin
21-Dec-2007 08:44
Every time I try to install ies4linux, I get a python segmentation fault.  Everything installed perfectly for me last time in Fedora 7 before I reformatted my HDD. Here's what it looks like (it's always in line 6)

[justin@localhost ies4linux-2.99.0]$ ./ies4linuxui/pygtk/python-gtk.sh: line 6:  6949 Segmentation fault      python "$IES4LINUX"/ui/pygtk/ies4linux-gtk.py
Gnorb
19-Aug-2007 00:04
Installed the package according to the instructions. Installation was flawless. However, I seem to be having an issue with the navigation bar. It seems when I type in an address whatever I type is not recognized by the system (in fact, the preview dropdown just displays question marks). Could the encoding be causing problems? Could the fonts installed be the issue? (I can send a list if necessary.)

Thanks.
filo
26-Jul-2007 04:42
Sorry, thanks for tutorial but ActiveX still doesn't works for me either for IE6 or IE5.5.
What else I have to do or check ? Should created config file have some  specific privileges ?
Preston Gallwas
06-Jul-2007 10:58
This fix hasn't worked for our Epicenter Centerline KVM system which relies heavily on activex.  Unfortunately, its up to VMWare for the time being.  It appears to work a bit (more) in the new IEs4Linux beta, but the "security" page is blank and I can't set properties for unsafe controls.
Dennis Hedegaard
15-May-2007 10:03
Thanks mate, solved my problem :)
Lijoe Chakiath
23-Oct-2006 06:21
Sir,

How can I have 1.1 .NET framework installed for this? One of the software I use need Activex and 1.1 .Net Framework.

I tried installing the dotnetfx.exe and it said at one time successfully compeleted. But even after restarting IE and trying to login this IE browser returns with message 1.1 .Net framework not installed, download and install.

Your help is highly appreciated here.

Regards
Lijoe
http://chakkys.com
